Four out of five web forms containing qRules are failing with errors such as:

Error

An unexpected error has occurred.

Web Parts Maintenance Page: If you have permission, you can use this page to temporarily close Web Parts or remove personal settings. For more information, contact your site administrator.

Troubleshoot issues with Microsoft SharePoint Foundation.

Correlation ID: b9f04c35-1e7b-423c-8c2f-c3644f0ea597

Date and Time: 10/25/2012 3:23:18 PM

Error

The first error above was previously occurring when DBXL was not able to access its databases- the forms included qRules that used DBXL. The issue with DBXL was corrected and all web forms were functioning fine.

That is until another issue with DBXL requiring CLR being enabled in the database was resolved. This may have been chance, or the two are related.

ULS log events along with an event viewer event are attached.

For background, see:

http://www.infopathdev.com/forums/p/24241/83815.aspx#83815

http://www.infopathdev.com/forums/p/24261/83890.aspx#83890

Hi-

Since there are no errors in the Qdabra log, I would assume the error is happening somewhere between the form and qRules and IPFS.

How are the forms published to SharePoint? If via DBXL, I would try just editing and resaving each document type via the DBXL Admin Tool. The SharePoint mapping should force a republish and (assuming the sandbox service is still running after the changes to the server) the form template will be refreshed in SharePoint, the code activated and hopefully the error goes away.

The issue appears to have involved DBXL not being able to connect to the database server. Complicating matters appears to have been some strange behavior with SharePoint involving caching/syncing settings and forms.

Ernesto,

The problem returned and a reboot of the SharePoint servers resolved it. I suspect it may return again.

The forms are published via Central Administration as administrator approved form templates. Oddly, one out of five forms is not effected. The form not effected is submitting to DBXL, the three forms that case errors when rendering for the web are submitting to SharePoint directly.

Error
An unexpected error has occurred.
Web Parts Maintenance Page: If you have permission, you can use this page to temporarily close Web Parts or remove personal settings. For more information, contact your site administrator.
Troubleshoot issues with Microsoft SharePoint Foundation.
Correlation ID: 2f7bb7a8-935b-4be2-89e2-da7743442529

=================

Business logic failed due to an exception. (User: XXXXX\XXXX, Form Name: DDE-Note_Form-MTN, IP: , Request: http://sharepoint/DDE/SiteAssets/EnterMTN.aspx, Form ID: urn:schemas-microsoft-com:office:infopath:DDE-Note-Form-MTN:-myXSD-2012-08-30T20-50-05, Type: SecurityException, Exception Message: Request for the permission of type 'System.Security.Permissions.UrlIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089' failed.)

Product: InfoPath Forms Services Category: Runtime - Business Logic
Process: w3wp.exe (0x0FA0)  Decimal: 4000
Thread (Hex): 0x0620   Decimal: 1568
EventID: 82g6    Level: Warning
Correlation: 2f7bb7a8-935b-4be2-89e2-da7743442529

=================

Exception thrown from business logic event listener: System.Security.SecurityException: Request for the permission of type 'System.Security.Permissions.UrlIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089' failed.
 at System.Security.CodeAccessSecurityEngine.Check(Object demand, StackCrawlMark& stackMark, Boolean isPermSet)
 at System.Security.PermissionSet.Demand()
 at Microsoft.Office.InfoPath.Server.DocumentLifetime.OMSecurityContext.ExecuteOMCall(Solution solution, SecurityLevel methodSecurityLevel, ExceptionFilter exceptionFilter, OMCall d)
 at Microsoft.Office.InfoPath.Server.DocumentLifetime.XmlFormHost.get_NamespaceManager()
 at Microsoft.Office.InfoPath.Server.SolutionLifetime.XmlFormProxy.get_NamespaceManager()
 at Qdabra.Tools.RulesLibrary.qRulesMain.get_NamespaceManager()
 at Qdabra.Tools.RulesLibrary.qRulesMain.ExecuteCommand(XmlEventArgs e)
 at Microsoft.Office.InfoPath.Server.SolutionLifetime.XmlEventExternal.<>c__DisplayClass10.<>c__DisplayClass14.<add_Changed>b__d()
 at Microsoft.Office.InfoPath.Server.Util.DocumentReliability.InvokeBusinessLogic(Thunk thunk)
 at Microsoft.Office.InfoPath.Server.SolutionLifetime.XmlEventExternal.<>c__DisplayClass20.<FireChangedEvent>b__1c()
 at Microsoft.Office.InfoPath.Server.DocumentLifetime.OMExceptionManager.CallFormCodeWithExceptionHandling(UserMessages userMessages, OMCall d)  The action that failed was:  Demand  The type of the first permission that failed was:  System.Security.Permissions.UrlIdentityPermission  The first permission that failed was:  <IPermission class="System.Security.Permissions.UrlIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  Url="file:///C:/Windows/assembly/GAC_MSIL/Microsoft.Office.InfoPath.Server/14.0.0.0__71e9bce111e9429c"/>    The demand was for:  <PermissionSet class="System.Security.PermissionSet"  version="1">  <IPermission class="System.Security.Permissions.UrlIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  Url="file:///C:/Windows/assembly/GAC_MSIL/Microsoft.Office.InfoPath.Server/14.0.0.0__71e9bce111e9429c"/>  <IPermission class="System.Security.Permissions.ZoneIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  Zone="MyComputer"/>  </PermissionSet>    The granted set of the failing assembly was:  <PermissionSet class="System.Security.PermissionSet"  version="1">  <IPermission class="System.Security.Permissions.SecurityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  Flags="Execution"/>  <IPermission class="System.Security.Permissions.StrongNameIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  PublicKeyBlob="0024000004800000940000000602000000240000525341310004000001000100AD35B3D910CF66CE6E16316D8B7874EDC6737661AC3CF7220594AD38ABA0F5E6143E11A56EE14546DEBB8C8B52CF16DA8D83517F418CFE4F0D3D51DCF5D19817F9B64FFA50DACA6C94780FE12F24B35DB496B7807604533F6FD8CA6B9940D0BB2548B9D26F9A75191026572705DD0D3E7ABEF7AA5A10AFFB0CA1D304FC5A47C6"  Name="Qdabra.Tools.RulesLibrary"  AssemblyVersion="4.2.4575.29315"/>  <IPermission class="System.Security.Permissions.UrlIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  Url="file:///C:/inetpub/wwwroot/wss/VirtualDirectories/SharePoint80/"/>  <IPermission class="System.Security.Permissions.ZoneIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  Zone="MyComputer"/>  <IPermission class="System.Web.AspNetHostingPermission, System, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089"  version="1"  Level="Minimal"/>  <IPermission class="Microsoft.SharePoint.Security.WebPartPermission, Microsoft.SharePoint.Security, Version=14.0.0.0, Culture=neutral, PublicKeyToken=71e9bce111e9429c"  version="1"  Connections="True"/>  </PermissionSet>    The assembly or AppDomain that failed was:  Qdabra.Tools.RulesLibrary, Version=4.2.4575.29315, Culture=neutral, PublicKeyToken=0582df40855a0fba  The method that caused the failure was:  System.Xml.XmlNamespaceManager get_NamespaceManager()  The Zone of the assembly that failed was:  MyComputer  The Url of the assembly that failed was:  file:///C:/inetpub/wwwroot/wss/VirtualDirectories/SharePoint80/

Product: InfoPath Forms Services Category: Runtime - Business Logic
Process: w3wp.exe (0x0FA0)  Decimal: 4000
Thread (Hex): 0x0620   Decimal: 1568
EventID: 7tg3    Level: Medium
Correlation: 2f7bb7a8-935b-4be2-89e2-da7743442529

=================

Request for the permission of type 'System.Security.Permissions.UrlIdentityPermission, mscorlib, Version=2.0.0.0, Culture=neutral, PublicKeyToken=b77a5c561934e089' failed.

Product: InfoPath Forms Services Category: Runtime
Process: w3wp.exe (0x0FA0)  Decimal: 4000
Thread (Hex): 0x0620   Decimal: 1568
EventID: 6615    Level: Critical
Correlation: 2f7bb7a8-935b-4be2-89e2-da7743442529

Update:

1. I republished one of the forms and the problem remains.

2. After rebooting the servers yesterday, the problem returned today.

3. Performing an iisreset /noforce on the web front end server corrects the problem until it returns again.

Update:

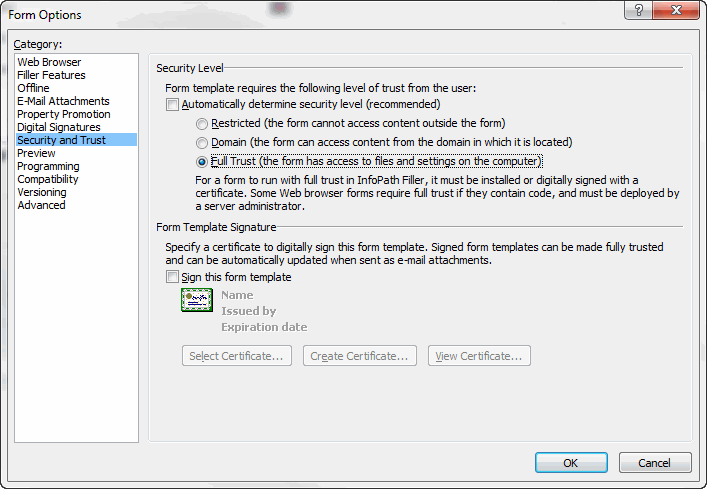

The forms were set with a security level of Full Trust and published as Administrator-approved form templates. I changed the security level to Automatic (with the Domain level radio button appearing selected while also grayed out) and the error did not reoccur. I first did this for one of the forms, verifying that it continued to work after several days. I then updated the other forms, which were failing with the error, and the updated versions work without error. No IISReset was needed.

I will wait to see if this workaround continues to be stable.
