I have InfoPath 2010 and am connected to a SharePoint list.  Everything works great until I try to hide/show a section of the form based on what's entered in a repeating table.  My form has three sections.

1. A repeating table called Repeating_Table with four columns (three text boxes and one checkbox).  One row is always visible, and users can insert additional lines as they need to.
2. A section called Conflict_Detail with two fields (one checkbox and one drop down).
3. A section called Move_Info with various fields on it.  The Move_Info section shows up only when a particular item is chosen in the Conflict_Detail drop down box.  This part works great.

The problem is that I'd like to show the Conflict_Detail section only when at least one of the repeating table lines has a checkmark (doesn't matter how many of them do).  Because the checkbox is in a repeating table, it appears to only look at the first row instead of all rows.  I have tried various controls in place of the checkbox, but nothing appears to work.

I have been searching for hours for something that will work and have found some that might work, but I don't understand the answers.  I am not a programmer (by a LONG shot), so I'm hoping for a fairly simple solution that I understand ... since conceivably, I might want to do this again someday.  Thank you!

Hi there,

I tried your scenario offline in a filler only form and my solution seems to work.  I basically had a repeating table with one column as the checkbox.  Another control in the form has a formatting rule on it that says "IF checkboxField = TRUE" then Hide this control.  There might be something difference since you are working with a SharePoint list.  I would double check that you have the correct value for "TRUE" in your if statement.  It should match whatever SharePoint uses when a checkbox is checked in order for your condition to work.

I can make it work if the checkbox is in the first row of the repeating table.  BUT, if the first row's checkbox is empty and the second row's checkbox is full, the hidden section never appears.  I am using a web-based data entry form.  Any other ideas?

I'm thinking your conditional formatting needs to be based off a count of the repeating group where the checkbox is whatever = checked in your form.

count(group/repeatinggroup[checkboxfield='true']) > 0

sort of a thing.

After a lot of angst and cursing, I got that to work.  Thank you so much!  :)

I generally start right off with the cursing. It saves time. :)

Hi Hilary,



I'm trying for same kind of senario, I've repeating table with two columns - checkbox and text box, getting values from SP list.  Example repeating table displaying checkbox and City for each row. like below.  I'm trying to hide and show other section(Citi's section) based on checkbox selection. Citie's sections located in other view of the form

If use select checkbox at LA in repeating table, I should display LA citisection. If use select checkbox at SFO in repeating table, i shoud display SFO citi section. i tried hard on options no luck. Please help me out

Checkbox  - SFO

CheckBox - LA

CheckBox - San Jose



I replied in the new thread you started here.

I am trying to implement this solution and i have the following rule already on the field see below. not(contains(../my:group1/my:group2/my:ItemNbr, "Other")) But i am having the same issue where if it is not in the first row it doesnt fire, how can i adapt your solution?

May I see your form? You can attach it under the Options tab in a reply.

It is attached

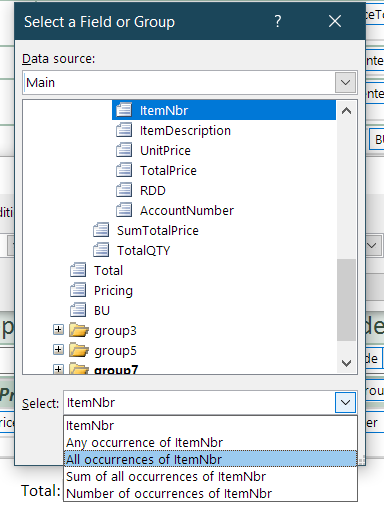

I think you just need to select "all occurrences" for the field.

i dont have that option...not sure where you are seeing that?

ok found it but it didnt work

yeah still only showing it on the first line not if it is on any other line.
