Hi All,


I am able to upload documents to the library using "SaveToSharePoint" command. If we open same form it showing saved document link.

Issue:
If the document file name has space like "XC Business Need Doc Test.docx", then document link is breaking not able to access the uploaded document.

Thanks In Advance

I can't reproduce this - I just tried it in my enviro, and don't have the same issue. What is the actual value in the qRulesLink field? What browser are you using? What version of SharePoint?

qRulesLink field value = "https://uat.net/sites/poc/CompoundFiles/XC 5467/2016033101423137261_XC_Business Need Doc_Test.docx"
Browser = IE 11
SharePoint Version = 2010

And the actual URL of the doc in the library?

Actual Doc library URL
https://uat.net/sites/poc/CompoundFiles/XC%205467/2016033101423137261_XC_Business%20Need%20Doc_Test.docx

How odd, since it works in IE 11 for me when I upload file with spaces in the name. Well, you could always use the qRules Encode command to URL encode the returned link? I think I'd add the rule on the qRuleLink attribute with the condition that if the value contains space, run the Encode command on the value, then reset the link attribute to the returned value from the Result node.

Hi Hilary,

How to use Encode command in below formula?
concat("SaveToSharePoint /url=", SharePointSiteUrl(), url, " /xpath=/my:POC/my:FilesGroups/my:FilesGroup[", @rowNum, "]/my:CFile")

Don't use the command in that formula. Add a rule to your qRules Link field with the condition that the field value contains spaces - if it does then use the encode command to encode the value and set the field to the result.

Thank you for your response.

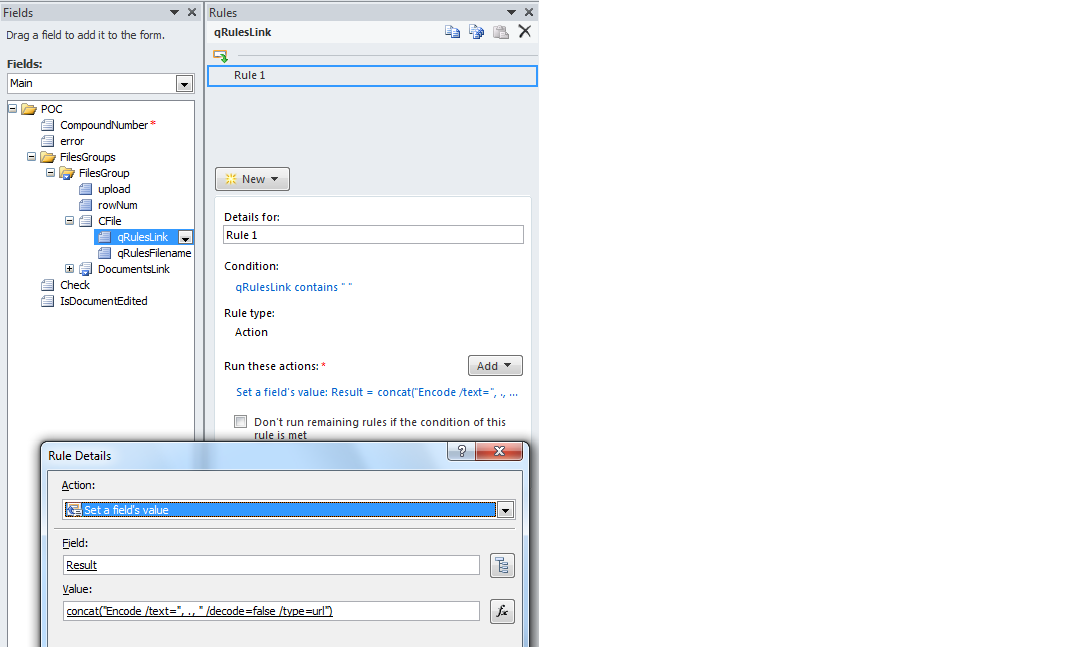

As you mentioned, I added rule to qRulesLink field with the condition. Please find the attached png.
But still qRule link is not encoded.

You need to set the qRules Command field. The encoded string will be returned to the Result field. Then you can set the link field to the Result field.

Thanks It is working perfectly.

Hi Hilary,

I have another question. I am not able to attach new files in existing .xml file using attachment control? Please find the attached infopath template for your reference.

Can you attach a screenshot showing what is happening when you open an existing XML file? I don't see anything hiding the repeating attachment control, so don't see a reason why you wouldn't be able to attach new files.

Hi Hilary,

I am not getting any error when I open existing XML file but If I add any new file to the attachment control and click on submit button, form getting refresh not saving in form library.

Note: But newly added attachment is saving in document library.
Thanks In Advance

I do see a rule on your "submit" button that appears to set a field's value after you submit and close the form - so that will be an issue. I don't know what this means: "form getting refresh not saving in form library". I think you are saying that when you re-submit an existing XML, the file isn't overwritten? But you don't have that option selected in the SharePoint Library submit connection.
