Any ideas why I am getting this error?

Sorry, I hadn't seen this message - what node is the rule on? Can you attach a copy of your form to a reply?

No worries. I don't begin to think that you have all the time in the world when it comes to my questions.

I believe its where you indicated it should be. I have attached the template.

xdXDocument:GetDOM("Market Country")/dfs:myFields/dfs:dataFields/d:SharePointListItem_RW[count(current()/preceding-sibling::my:grpMarketCountry) + 1]/d:Title

Looks like the XPath to the country field is actually "d:Title" & the namespace prefix was missing before grpMarketCountry. :)

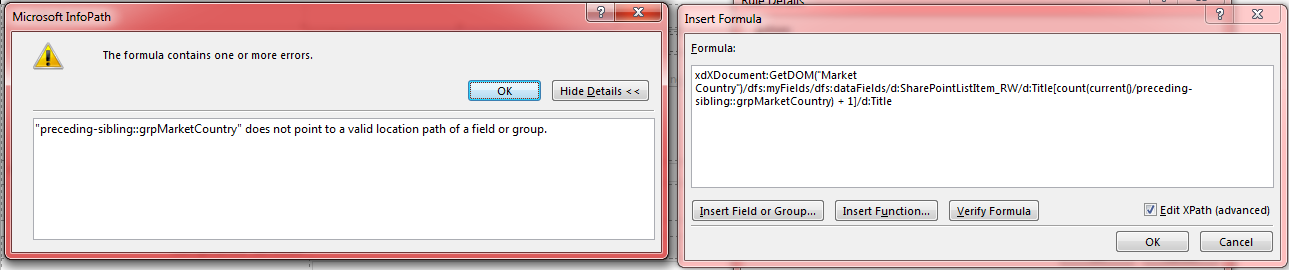

Trying to do that the way I think it should be done, by selecting field or group and selecting Market Country, then add the rest of the line, I get a formula error.

You are still missing the "my:" prefix before grpMarketCountry. That is why you are getting an error.

Ok, got it with no errors in the formula. When I go to preview I am still not getting those inserted though and the error node indicates: Failed to insert the child node.

Insert is tricky - Your repeating node has to be the last item in the parent group. In your form schema, move grpMarketCountry below grpMarket.

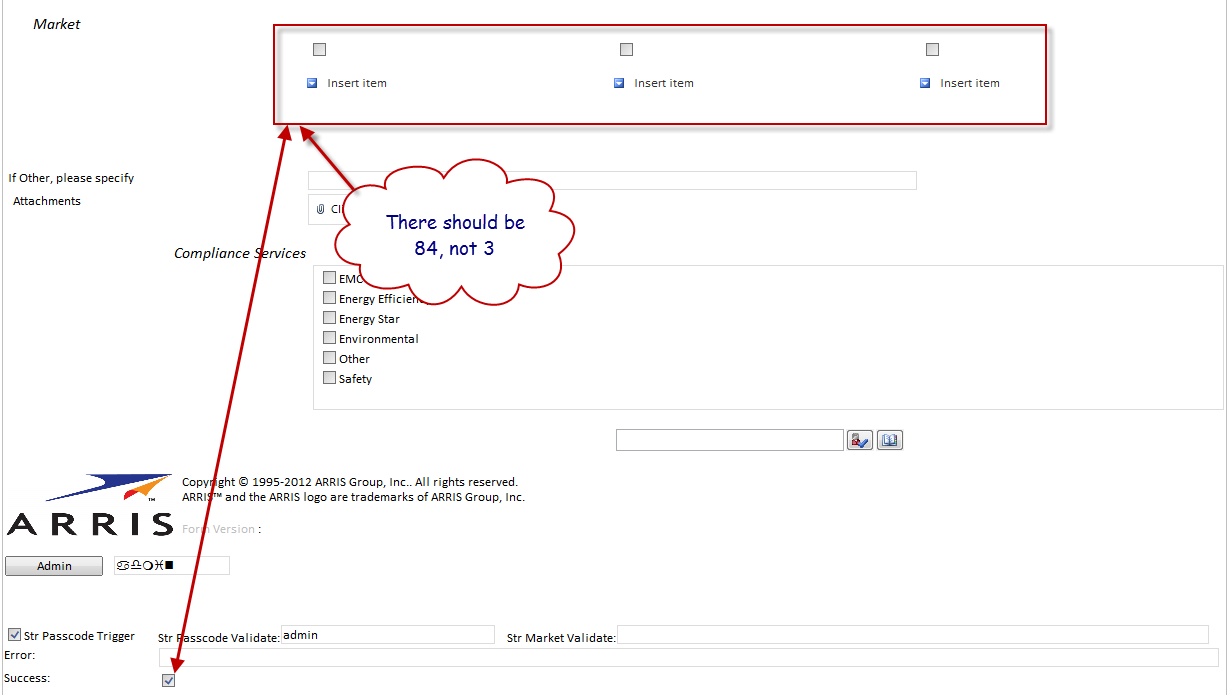

Did that. The error is gone AND the success node is selected, but there are no fields. There should be 84 and there are only the 3 showing that are actually in the form.

Any chance there are more but your conditional formatting is incorrect? Maybe drag the repeating node onto the form so you can see for sure how many there are?

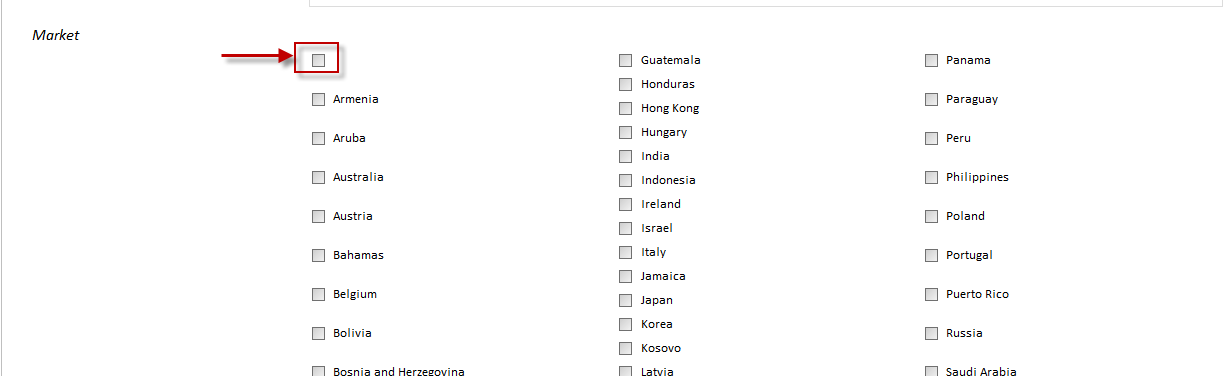

Ok, I have gotten it to return values. It is not suppressing the first repeating field like it is in the other two 'columns'. Also, what's up with the weird formatting? I would love for all 'columns' to look like the center one. I don't have anything set on those fields.

In the form data (Data tab, defaults) set the repeating field to not be included, or delete the repeating field prior to inserting. I do not know what is up with the weird formatting.

That worked and somehow I managed to fix the formatting issue. Not exactly sure what I did though.

Can we take this one step further and change the check boxes to an option button and during the load when it loads the label can it also set the default configuration 'value when checked' value of the option button to be the same as the label? Is that even possible?

No - we can't change the value when checked of the control at run time for an option button, I'm afraid.
